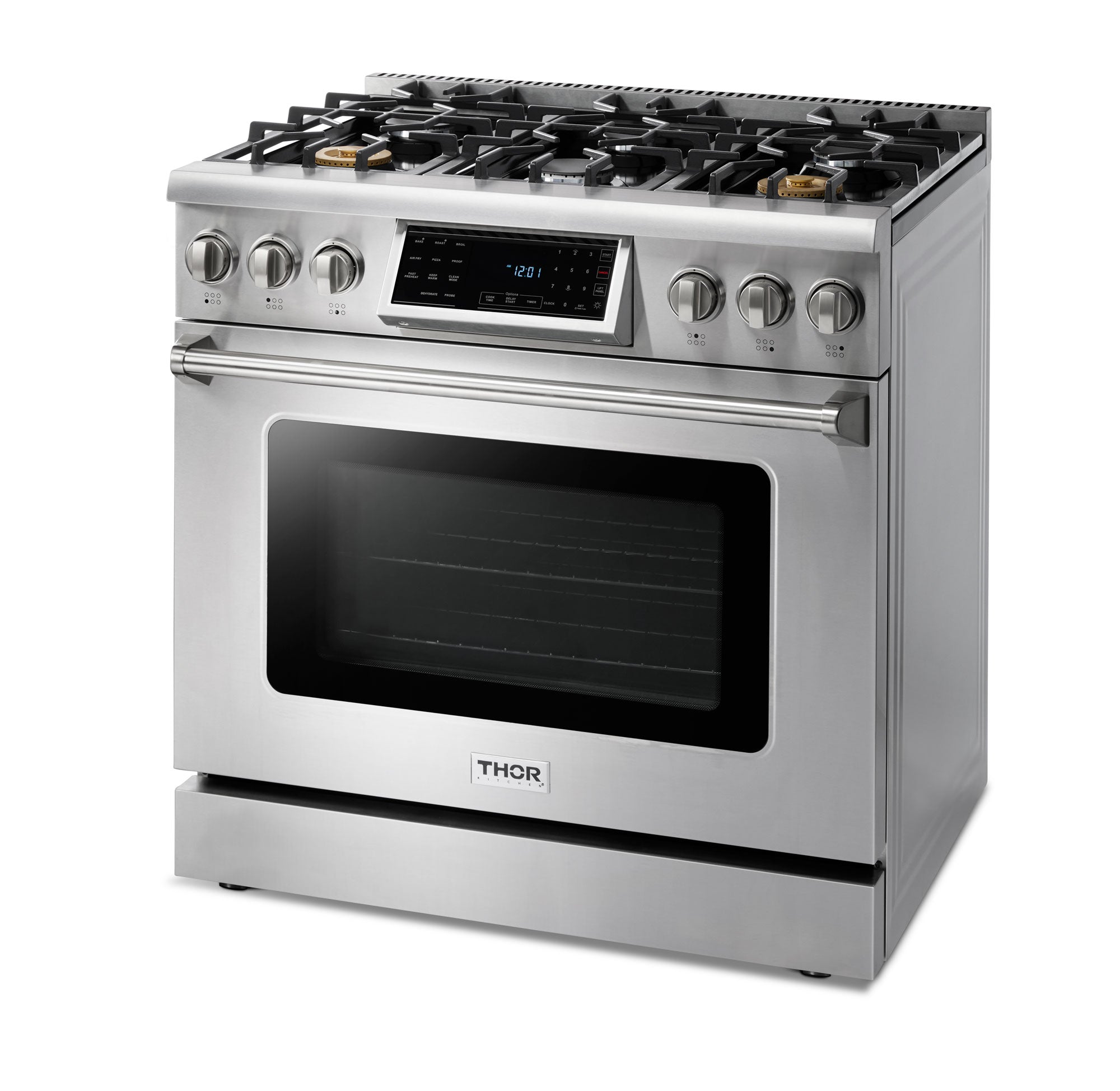

TRG3601LP - 36 Inch Tilt Panel Professional LP Range

TRG3601LP
36 In stock
Gas Range
$3,105.00
Features and Benefits
  • High-Powered BTU Burners - The high-powered 18,000 BTU burner provides fast, intense heat for creating large family meals and restaurant-quality dishes Large
  • Oven Capacity - 6.0 cu. ft. oven capacity can accommodate multiple dishes for enhanced cooking
  • Storage Space - Storage drawer provides additional storage space for cooking trays and other kitchen utensils.
  • Convection Fan - Commercial convection fan provides controlled heat distribution for fast and efficient cooking
  • Even Heat Broiler - Reflective gas tube broiler distributes heat evenly to sear your food and seal in the juices
  • Continuous Cast-Iron Grates - Heavy-duty continuous cast-iron cooking grates that can handle any size cookware
  • Pro-style Knobs - Black burner control knobs add style to the bold range design
  • Porcelain Spill Tray - Single-piece black porcelain spill tray catches the mess and makes cleanup easy
  • Porcelain Interior - The gray porcelain oven interior adds a stylish touch and is easy to clean
Technical Details
  • Fuel Type Liquid Propane
  • Electrical Requirements 120V
  • Circuit Breaker (A) 15 or 20A
  • Frequency (Hz) 60 Hz
Burner Performance

Total Burners 6
[1] Front Left (Single) 18,000 BTU
[2] Front Middle (Single) 12,000 BTU
[3] Front Right (Single) 18,000 BTU
[4] Rear Left (Single) 9,000 BTU
[5] Rear Middle (Single) 12,000 BTU
[6] Rear Right (Single) 9,000 BTU
Tube Broil burner 10,000 BTU
Bake burner (30” Oven) 18,500 BTU

Accessories (Not Included)
  • Wok Ring WK01
  • Cast Iron Reversible Griddle RG1022
Product Dimensions

Product Width 36”
Product height (from bottom to top of back splash) 36 5/16”- 37 5/16”
Product height (from bottom to top of side panel) 35 5/8”-36 5/8”
Product depth (from back panel to bullnose) 28 5/16”
Product depth (from back panel to control board) 27 1/16”
Product depth (from back panel to side panel front) 24 3/4”
Depth of control panel (minimum) 2 1/4”
Depth of control panel (bullnose) 3 9/16”
Adjustable Legs Not to Exceed 1”

Required Cutout Size

36 1/8” x 24 3/4” x 35 5/8” (+1”)
